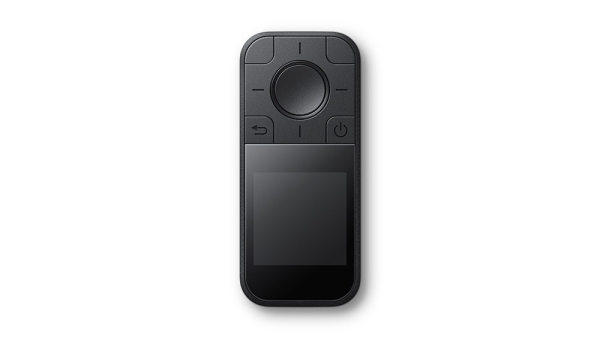

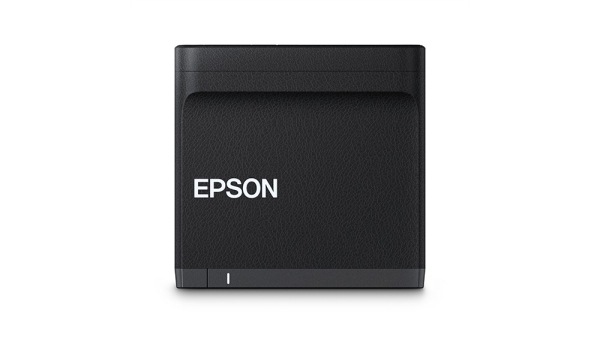

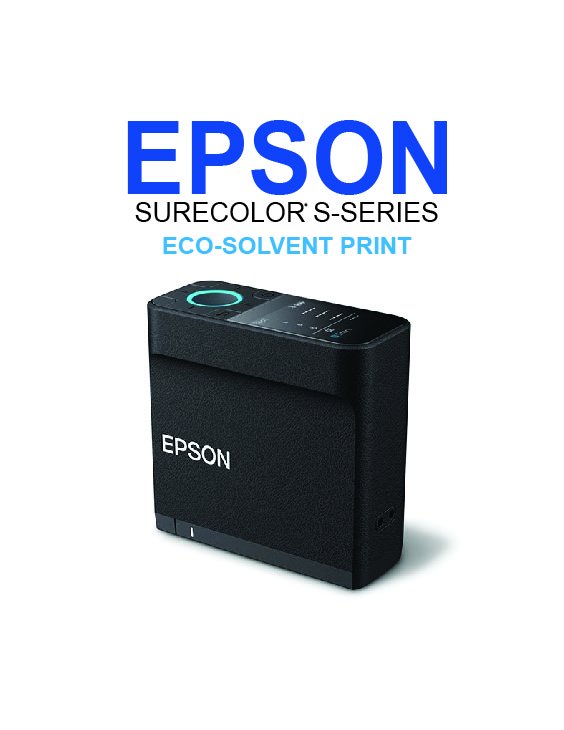

EPSON SD-10 DIGITAL COLOUR SPECTROPHOTOMETER
 EPSON SD-10 DIGITAL COLOUR SPECTROPHOTOMETER  EPSON ECO SOLVENT PRINTER Malaysia, Johor Bahru (JB), Selangor, Kuala Lumpur (KL), Penang, Terengganu, Sabah Supplier, Supply, Supplies, Dealer | KPP-ANTALIS (MALAYSIA) SDN BHD
Quantity
How to Scan the Color Patches Epson SD 10EPSON SD10 + Cloud Solution Port

Download Files
Epson_SD-10_(Updated).pdf (1.05 MB)



Genuine Total Solution with Stunning Print Quality

Going digital with colour management is now easier than ever with the SD-10, Epson’s first portable colour spectrophotometer. Businesses can save precious time on printing workflow with Spot colour-matching acceleration and a user-friendly colour management system. With the lightweight device, you can easily and quickly compare colours, measure colour values, and reproduce the colour. Eliminate the hassle of analogue colour matching today!



  • Epson’s first Digital Colour Spectrophotometer
  • Standalone spectroscopic device for hassle-free operation

  • Epson Spectrometer App

  • In-built LCD screen and battery

  • Great portability weighing just 190g



​Marrying portability with precision in colour matching, the Epson SD-10 spectrophotometer measures colours with high accuracy while on the go with high reliability. Engineered to ensure the ease of colour management, the SD-10 is especially useful for designers and businesses in the printing and art industry where it is essential to have highly accurate colour matching on the prints.


IMPROVED COLOUR MATCHING WORKFLOW
Eliminate the time-intensive process of colour matching in an analogue workflow by going digital with SD-10. Instead of going through multiple visual checking and data adjusting, let Epson’s spectrophotometer do the spot colour matching and reproduce exact colours, helping your business save on valuable time and costly manpower.


HASSLE-FREE OPERATION
Lightweight & Portable
The compact SD-10 weighs only 186g and is highly portable with its own carrying case and wrist strap.


Network-free & PC-less Operation

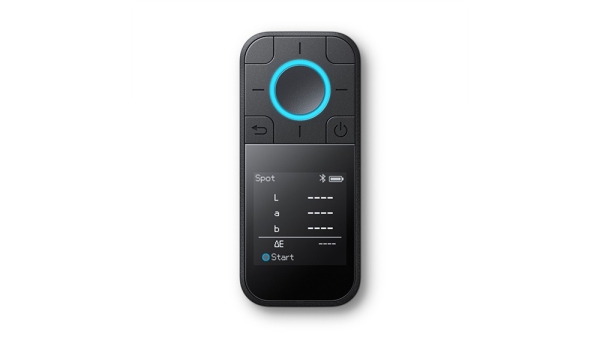

Operate the SD-10 as a stand-alone unit without needing a PC or connecting to any network. The spectrophotometer is equipped with a LCD display and built-in battery for lasting operation, and is easily chargeable via USB Type C cable.


FLEXIBLE CONNECTIVITY
Epson Spectrometer App
Connect to the mobile application via Bluetooth*1  to store the colour data and for easy reference in the future.

Wide Range of Software Compatibility
Using USB Type C*2 or via Bluetooth*3, you can easily connect to a wide selection of creative softwares to facilitate designing and printing process.


INTUITIVE DIGITAL DESIGN
Graphical Information
Get all the colour-related information including the measurement figures and similar colours via the SD-10 app in both graphics and text. With gamut in/out profile, businesses can know immediately if the identified colour is printable or not.

Easy Colour Comparison
Colour inspection and verification is made easy as the colours can be easily and quickly compared and checked against previous measurement records.



What's In The Box:

  • Set Up Guide*

  • Storage case

  • Strap

  • USB Type A to C cable

  • Certificate of calibration



Environmental Characteristics:

Temperature:Operating: 0 ºC – 40 ºC (Spot Mode) / 0 ºC – 35 ºC (Scan Mode) Storage: -20 ºC – 60 ºC
Humidity:Operating: 5 – 85% (No Condensation)
Storage: 5 – 85% (No Condensation)



Dimensions and Weight:

Weight:Approx. 190g (Without Stand)Shutter Opened (W x D x H):35 X 80 X 77.6 mmShutter Closed (W x D x H):35 x 80 x 80 mm


Electrical Specifications:

Electric Power Consumption:Operating: 5VVoltage:AC 220 – 240V


System:

Compatible Epson Software:Epson Edge Print Pro / Epson Spectrometer App


Colour Measurements:

Technology:Spectroscopic DeviceSpectral Range:400 – 700nmSampling Interval:Colour MeasurementPhotometric Range:10 nm (Interpolation by software)Measurement Frequency:13 times measurement per second (Scanning Mode)Measurement Geometry:45º Circumferential / Normal Geometry (45º c : 0º)Measurement Aperture:Φ 7.6mmLight Source:LED (Including UV)Measurement Conditions:M0: Including UV light component, ISO 13655:2017 measurement condition M0
M1e: D50 - Including UV light component, measurement conditions equivalent to ISO 13655:2017 measurement condition
M1 (Measurement conditions held with a radiant power at all wavelengths from 400 to 700 nm, and power ratios in the 300 to 400 nm and 400 to 500 nm regions similar to D50)
M2: Without UV, ISO 13655:2017 measurement condition M2Calibration:White reference built in the sensor coverScan Length:400mmInter-Instrument Agreement:0.4 or less ΔE00 average
1.0 or less ΔE00 maximum
Deviation from SD-10 manufacturing standard for 12 BCRA colour tiles (D50, 2˚)
Ambient temperature 23˚C (73.4˚F), humidity 50%Short Term Repeatability:0.1 ΔE94 White
Average of 10 measurements every 3 seconds on white tile (D50, 2˚)
Ambient temperature 23˚C (73.4˚F), humidity 50%Colour difference from BCRA tile:Calibration value 1.0 or less Δ E00 average
Deviation from the colour measurement value for 12 BCRA colour tiles (D50, 2°) by a measuring instrument traceable to the national metrological standard
Ambient temperature 23˚C (73.4˚F), humidity 50%



Language:

Supported Language:English / French / German / Dutch / Italian / Spanish / Portuguese / Turkish / Russian / Simplified Chinese / Traditional Chinese / Korean / Japanese


Battery Specification:

Battery Type:Lithium ion batteryBattery Capacity:1,860mAh


Connectivity:

USB Interface:USB Type-C
USB 2.0 Full-SpeedMemory:Number of saved data at Stand-alone (Spot Mode): 100 ColoursBluetooth:BLE Bluetooth Low Energy



Notes:

* PDF user guide is provided on the web/CD-ROM of Open-Source software license document.

*1 SD-10 can connect to smartphone via Bluetooth.

*2 SD-10 can connect to PC via USB-C cable.

*3 Requires Epson Edge Print Ver. 4.1 or later.
